Patented

RAM® No-Drill™ Ball Mount for '15-26 Ford F-150, ’17-26 F-250 + More

Part#: RAM-VB-195-DB2
UPC: 793442022319
$250.99

Overview

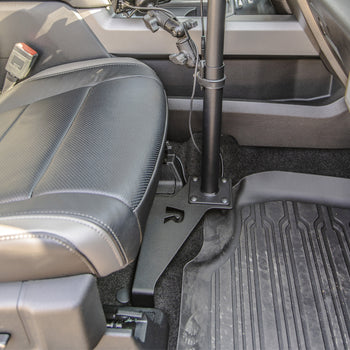

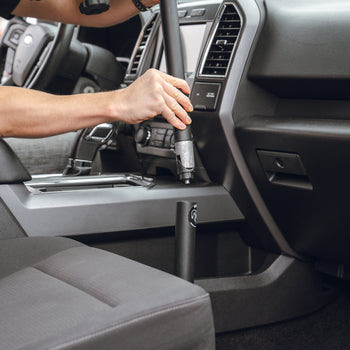

The RAM® No-Drill™ Ball Mount for '15-26 Ford F-150, ’17-26 F-250 + More (RAM-VB-195-DB2) installs quickly and easily into a variety of Dodge, Ford, and Jeep vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. The 3-part ball and socket system attached to the pole is compatible with a variety of device holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

Features

  • Custom laptop vehicle mount designed specifically for 2015-2026 Ford F-150, 2017-2026 F-250, and much more
  • Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
  • Ball and socket mounting system offers shock and vibration damping
  • Compatible with any RAM® holders or GDS® docks with a 4 hole AMPS pattern
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware
Stabilizer Foot

socket to socket length:

8"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 13.625" center to center

plate size:

2.5" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Powder coated steel
Marine grade-aluminum

packaging type:

Box

Weight:

11.5 lb

Additional Information:

This kit is intended to support tablets and not laptops.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
