GDS® Uni-Conn™ Powered Dock
One Dock to Connect Them All™
$92.99
Non-Locking
Features
- Clip-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- USB Type-C Female connector provides high-speed charging to the dock
- RAM® Mounts Compatible™
- Backed by a 3-year warranty

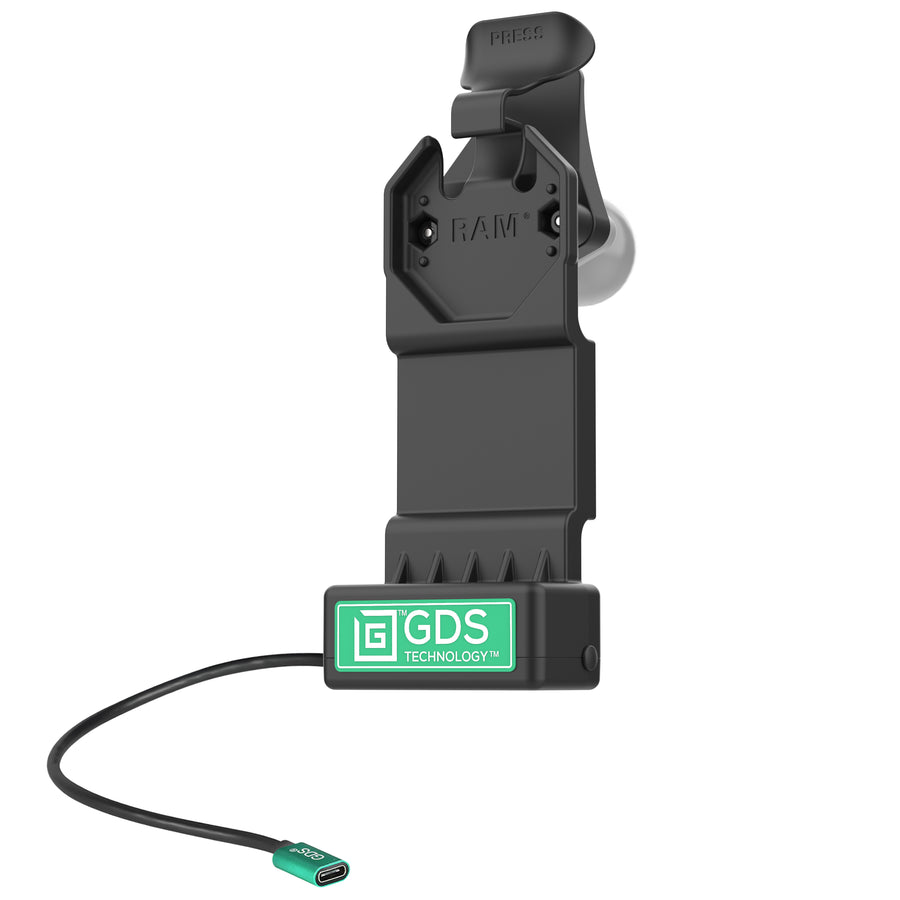

The GDS® Uni-Conn™ Powered Dock (RAM-GDS-DOCK-U1CPU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet, all with one hand. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A 7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
GDS® Uni-Conn™ Powered Dock
One Dock to Connect Them All™
Overview
The GDS® Uni-Conn™ Powered Dock (RAM-GDS-DOCK-U1CPU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet, all with one hand. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A 7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included
(1) Lever Stop
(2) #8-32 x 1" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit
product dimensions
Overall Width: 3.16"
Overall Height: 8.44"
Overall Depth: 3.03"
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
output voltage
5V - 12V @ 3A
power output
15W
input connector
USB Type-C
input cable length
215mm
Warranty
3 year warranty
Weight
0.5 lb
Additional Information
The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.
